Integrating YuJa Lumina into Blackboard Ultra Using LTI 1.3

Avatar
YuJa
  • Updated

As an admin, you can connect Lumina with your Blackboard Ultra Learning Management System (LMS) to make Lumina available inside Blackboard Ultra for managing media recordings and quizzes.

Before You Start

Ensure you have a Key, Shared Secret, Zone URL, and Client ID obtained from your Account Manager.

Adding Lumina to Blackboard Learn Ultra

  1. Log in to Blackboard as an admin and select Admin from the side navbar.
    Admin button is highlighted in the side panel.

  2. Under the Integrations section, click LTI Tool Providers.
    LTI Tools Providers is selected in the Administrator Tools page.

  3. Click Register LTI 1.3/AdvantageTool.
    Register LTI 1.3/AdvantageTool is selected in the Administrator Tools page.
  4. Enter the Client ID provided by your Account Manager and click Submit.
    client ID field and submit button is highlighted.
  5. Take note and copy the Deployment ID, Initiate Login URL, Tool Redirect URL, and JWKS URL shown.
  6. Under Tool Status, select Approved.
  7. Under Tool Provider Custom Parameters, enter the required information on separate lines:
    • blackboard_course_previous_context_ids=$Context.id.history
    • lis_person_sourcedid=@X@user.id@X@
    • lti_login_id=@X@user.id@X@
  8. In the User Fields to Send field, select Role in Course, Name, and Email Address.
  9. In the Allow grade service access field, select Yes.
  10. In the Allow Membership Service Access field, select Yes.
  11. Click Submit.

Adding the LTI 1.3 Placement for Lumina

LTI placement, including a name and link, makes it easy for end-users to find and use Lumina. Although it is not required, managing the placement of this tool is strongly recommended.

  1. From the LTI Tool Providers menu, click on the drop-down menu of your YuJa 1.3 LTI Tool.
  2. Click Manage Placements.
  3. Select Create Placement.
  4. Input the Placement Information as follows:
    • Label: YuJa Lumina
    • Handle: YuJa Lumina
    • Type: Course Tool, Allow student access
    • Tool Provider LinkURL: https://<Your_YuJa_Domain>/LTI3Entry.jsp
  5. Select Submit.

Adding Deep Linking Placement for Video Quizzes and Analytics

You will need to add a second placement once LTI 1.3 for Lumina is installed. This allows users to publish their videos and video quizzes into their Blackboard courses. Note: By default, Blackboard will assign 100 points to a video quiz when it's inserted.

  1. While in Manage Placements for <Your_YuJa_Domain>, select Create Placement.7.png
  2. Under PLACEMENT INFORMATION, enter the required information:
    • Label: YuJa Video Quizzes and Analytics
    • Handle: YuJa Video Quizzes and Analytics
    • Type: Deep Linking content tool. Select Allow student access
    • Tool Provider URL: https://<Your_YuJa_Domain>/LTI3Entry.jsp
  3. Select Submit.

Integrating Blackboard Ultra into Lumina

Once the registration and placement information is configured in Blackboard, you will place the API Configuration keys into Lumina for integration.

  1. Log in to Lumina as an admin.
  2. Click the Main Menu icon > Admin Panel.clicking admin panel within the main menu button.

  3. From the sidebar, select Integrations.The integrations tab in the sidebar.
  4. Under Select Integration, select LMS via LTI 1.3.
  5. Under Choose a LMS, select Blackboard.

  6. Under LTI Configuration, enter the required information:

    • ISS: https://blackboard.com
    • Client ID: Refer to your Zone Provisioning document.
    • OIDC: https://developer.blackboard.com/api/v1/gateway/oidcauth
    • JWKS Endpoint: Refer to your Zone Provisioning document.
    • OAuth 2 Token: https://developer.blackboard.com/api/v1/gateway/oauth2/jwttoken
    • Deployment ID: Refer to step 5 in the Adding Lumina to Blackboard Learn Ultra section. If entering multiple Deployment IDs, separate each by a single comma.

    the required information for integration in the integration tab.

  7. (Optional) If your institution has a vanity URL, click Add Configuration to add a second API configuration.

  8. Enter the required information:

    • ISS:
      • For Production instances: https://<YOUR_BLACKBOARD_VANITY_URL>
      • For Test instances: https://blackboard.test.com or https://blackboard.beta.com
    • Client ID:  Refer to your Zone Provisioning document.
    • OIDC Endpoint: https://<YOUR_BLACKBOARD_VANITY_URL>/api/lti/authorize_redirect
    • JWKS Endpoint: https://<YOUR_BLACKBOARD_VANITY_URL>/api/lti/security/jwks
    • Outh2 Token Endpoint: https://<YOUR_BLACKBOARD_VANITY_URL>/login/oauth2/token
    • Deployment ID:  Refer to step 5 in the Adding Lumina to Blackboard Learn Ultra section. If entering multiple Deployment IDs, separate each by a single comma.

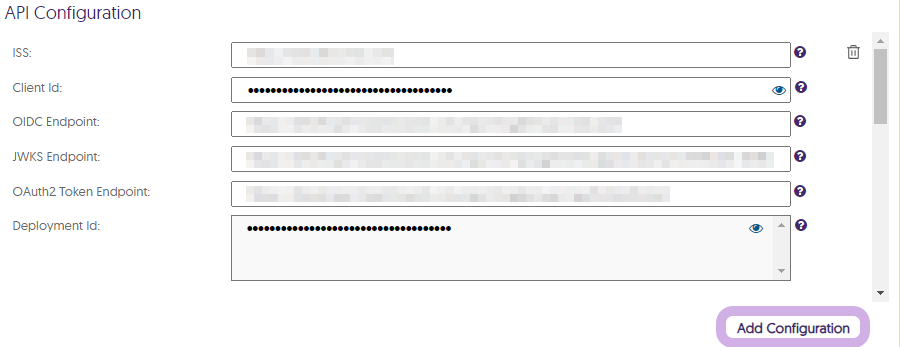

    The Add Configuration button is highlighted in the LTI Configuration section

  9. Click Save.

Note: When filling out the API Configuration fields, ensure that there are no spelling mistakes, extra symbols, or spaces.
