Configuring Settings for the Minrray UV100T Series IP / Tracking Cameras

This guide will provide instructions for Administrators to configure the network and recording settings for their Minrray UV100T Series IP / Tracking Cameras.

Configuring the Network Settings for the Minrray UV100T Series IP / Tracking Camera

To complete this task, the users will need access to a Windows machine with an Ethernet port.

1. Connect the Minrray UV100T Series IP / Tracking Camera to the Windows computer using the Ethernet port.
2. On the Windows search bar, search and launch the Control Panel.
3. Select the Network and Internet category, then choose Network and Sharing Center.
4. Double-click the Connections option for the newly connected Minrray UV100T Series IP / Tracking Camera.




5. Select Properties.




6. Double-click the option for Internet Protocol Version 4 (TCP/IPv4).




7. Check the box for Use the Following IP Address.
8. Set the IP address of your Windows computer to have the same IP range as your Minrray UV100T Series IP / Tracking Camera, then click OK. For example, if your Minrray UV100T Series IP / Tracking Camera uses the IP address 192.168.5.191, then use the IP address 192.168.5.100 for your computer.




9. Select Yes on the Microsoft TCP/IP pop-up.

Configuring and Controlling the Minrray UV100T Series IP / Tracking Camera Using Software

The software required for this section will be provided to you by your Customer Success Manager. This software is only compatible with Windows machines.

1. Install the camera software sent to you by your Customer Success Manager.
2. Connect the Minrray UV100T Series IP / Tracking Camera to your router.

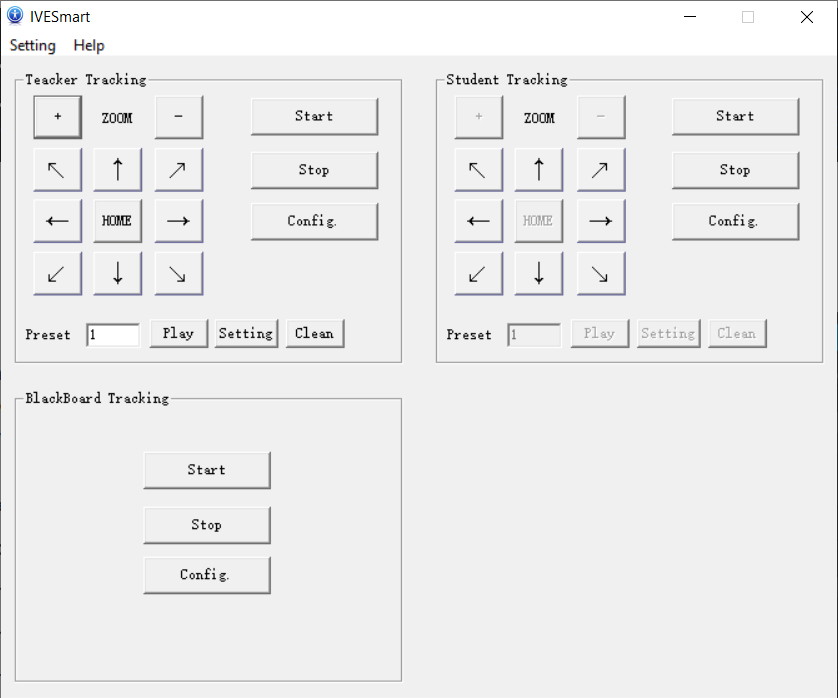

3. Launch the camera software on your computer, then click on Settings and choose the IP Address.




4. Enable the Teacher Tracking Camera option and fill in the following information.
• Camera Type: Select PTZ Teacher Camera if your IP / Tracking camera comes with a close-up camera attached, otherwise, select I Teacher Camera.
• IP Address: The IP address for Minrray UV100T Series IP / Tracking Camera.
• Data Port: 3000
• VISCA Port: 1259
• User Name: admin
• Password: admin
• Apply the same settings to the Close-up Camera session, and make sure to use the IP address for the close-up camera.
5. Select the computer IP address from the drop-down, then click Search.
6. Once the Minrray UV100T Series IP / Tracking camera shows up, click Confirm.
7. Back in the main software's interface, click Stop to stop the camera from tracking.
8. Wait for 10s, then click Config.

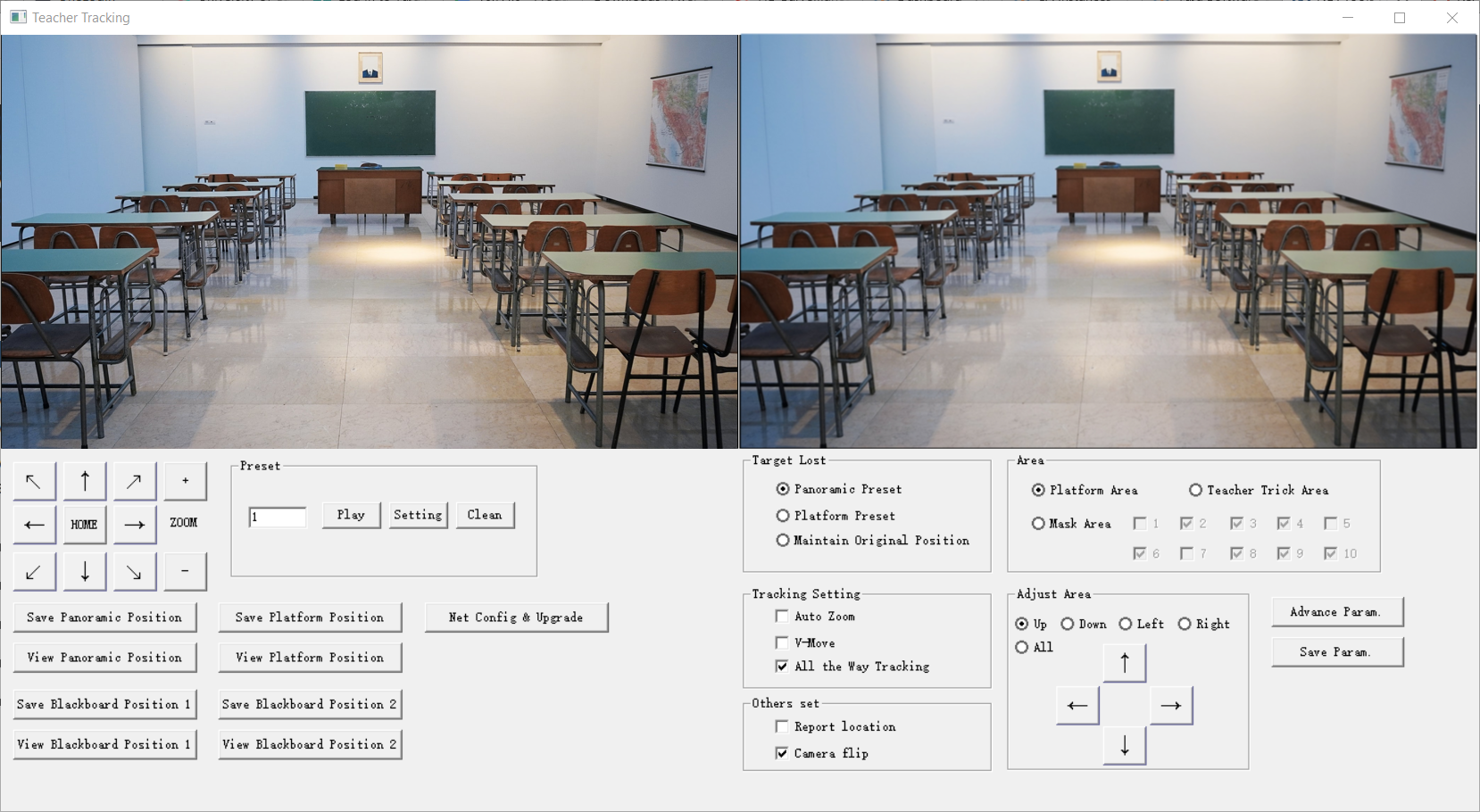

9. The camera(s) will start to show live feeds.




Configuring and Controlling the Minrray UV100T Series IP / Tracking Camera Using an Internet Browser

Users will also be able to configure and control the Minrray UV100T Series IP / Tracking Camera from their web browser.

1. Launch your web browser, then type in the IP address for the Minrray UV100T Series IP / Tracking camera.
2. Select the preferred language for the interface.
3. The default username and password are admin.
4. In the upper right corner, select Configure to access various pictures and streaming settings.
