The Annotation Toolbar provides various tools to use while recording a video using the YuJa Software Capture for PC application. YuJa Content Creators can utilize, draw, or highlight features to enhance on-screen recordings or live-stream sessions.
Accessing the Annotation Toolbar
The Annotation Toolbar can be displayed at the bottom of your screen for use through the application window or the Recording Toolbar.

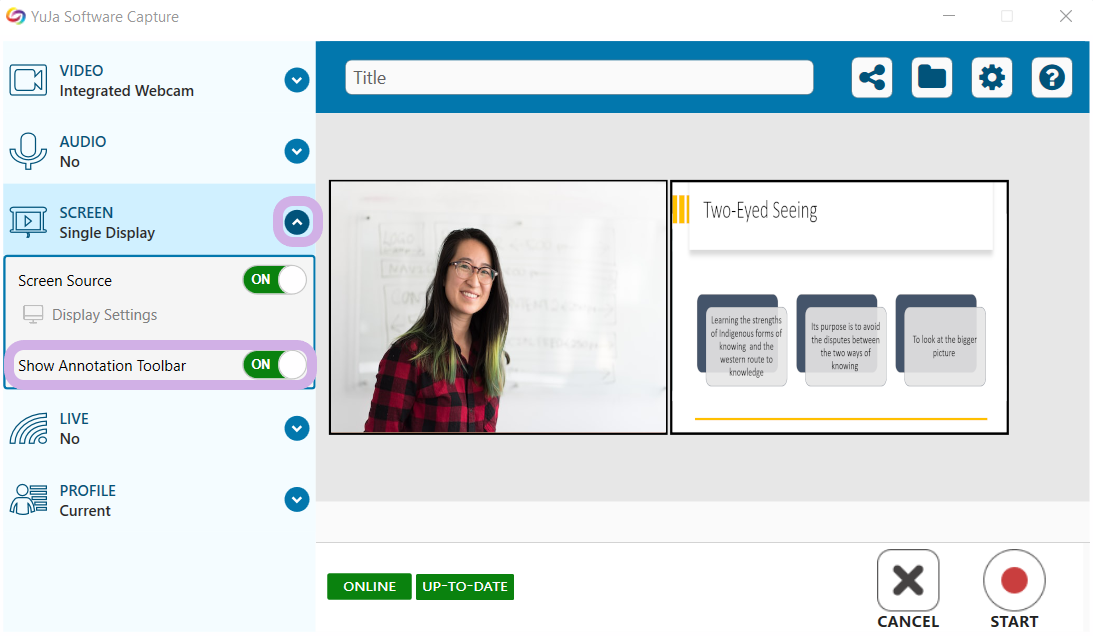

- To access the Annotation Toolbar from the Software Capture application, select the drop-down arrow next to Screen and toggle on Show Annotation Toolbar.

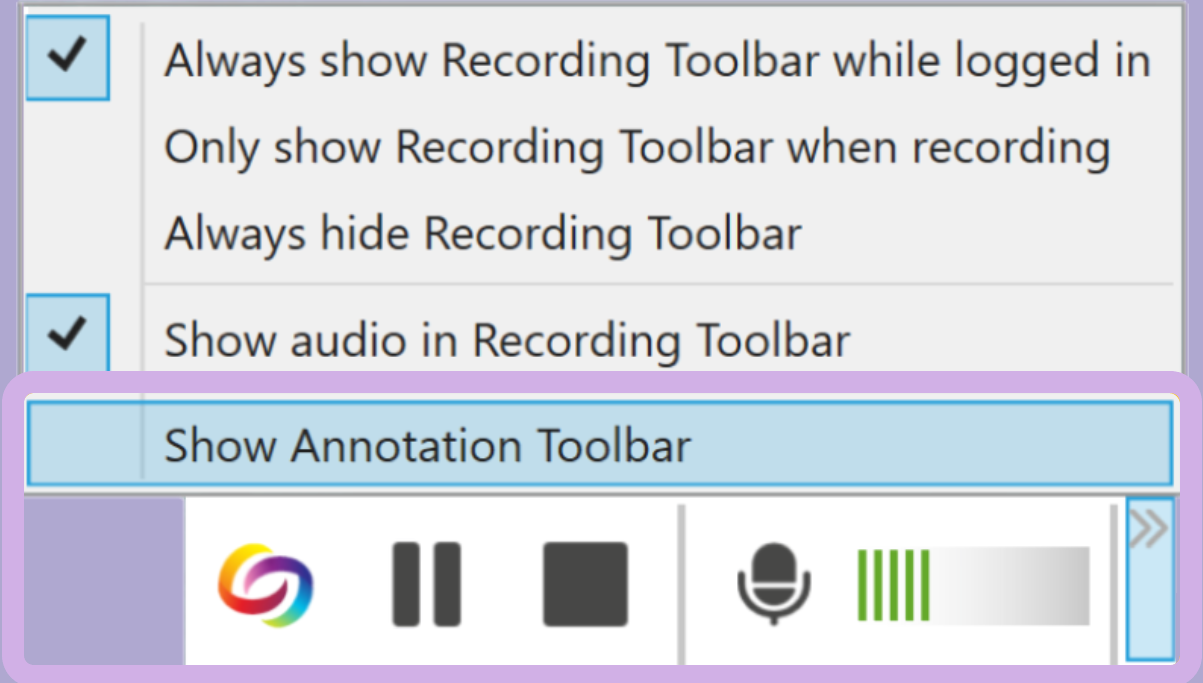

- To enable the Annotation Toolbar during a recording, locate the Recording Toolbar at the bottom-right of your screen.
- Click the double arrows and then select Show Annotation Toolbar.
Using the Annotation Toolbar
The Annotation Toolbar has a variety of features that allow you to draw, highlight, and erase on your screen.
| What's It Called | What It Does | |
| Eraser | Remove a portion of a stroke. | |
 |
Thin Pen | Draw with a thin line at 2px. |
 |
Medium Pen | Draw with a thick line at 5px. |
 |
Highlighter | Highlight words or items on the screen. |
| Shapes | Select from a variety of shapes to add to the screen. Shapes include a line, rectangle, ellipse, diamond, arrow, star, right-angle triangle, and isosceles triangle. | |
| Eraser Stroke | Remove an entire stroke. | |
 |
Select | Encircle a stroke to select it, allowing the stroke to be resized, moved, or deleted. |
| Clear All | Removes all strokes from the screen. | |
| Thickness | Alter the pen thickness from 1px to 20px. | |
| Cursor Mode | Switch back from annotation mode to cursor mode. | |
| Custom Pen Color | Select a custom pen color from a color wheel. | |
 |
Pen Colors | Select from a list of standard colors, including black, blue, green, orange, and red. |
