Integrating a IP / Wireless Camera into the YuJa Software Capture for PC Application

The YuJa Software Capture for PC application allows Content Creators to record and live stream directly from an IP / Wireless camera within the local or your Organization's network. The guide below will provide users with steps on how to integrate an IP / Wireless camera into the YuJa Software Capture for PC application.

Integrating the IP / Wireless Camera with the YuJa Software Capture for PC Application

The first section summarizes the process of inserting the IP / Wireless camera’s streaming protocol and IP address into the YuJa Software Capture for PC application.

1. First, find the IP address of the IP / Wireless camera. Refer to the camera's user manual for how to obtain the IP address.

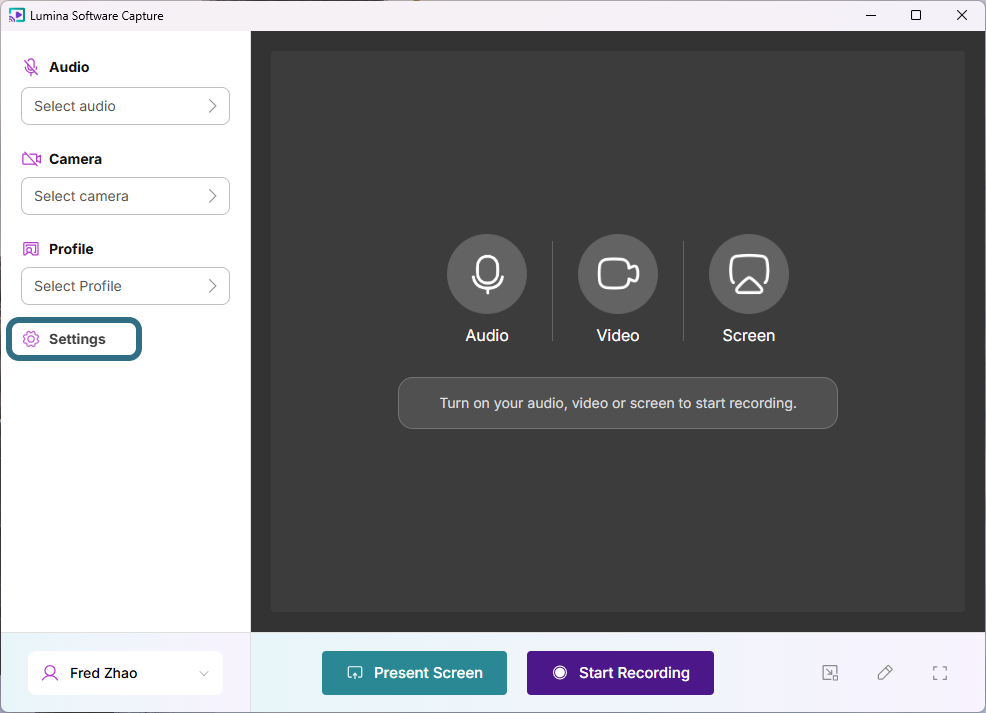

2. Next, right-click on the YuJa Software Capture icon from the Windows tray and select Settings.

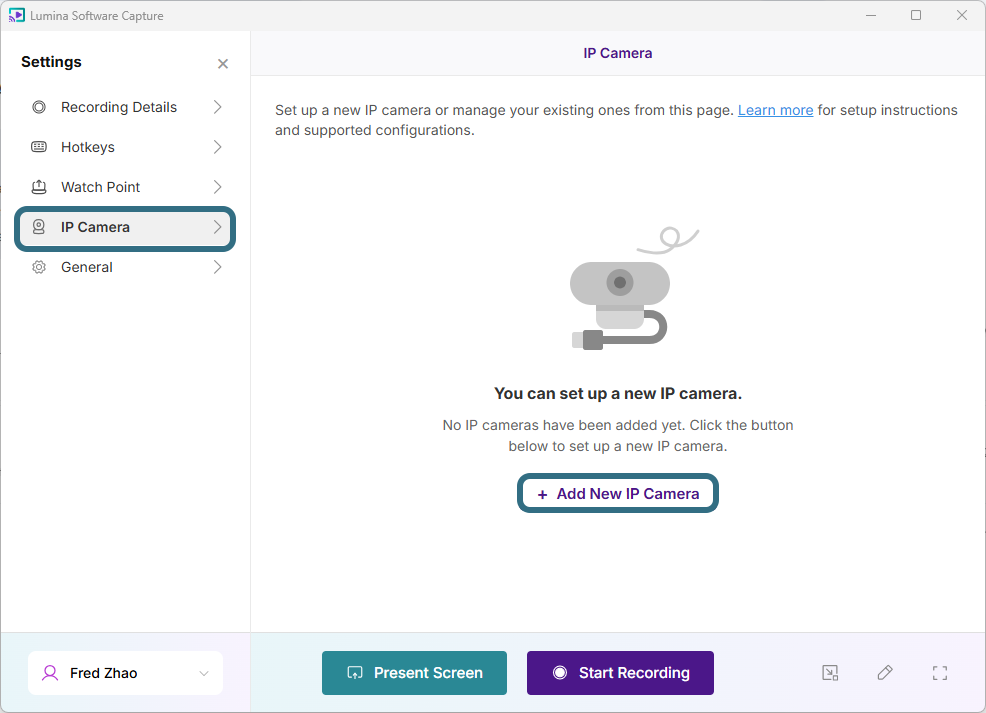

3. Under the Profiles menu, click the plus sign to add a new streaming profile.




4. Select the Add IP Camera option under the video source settings.

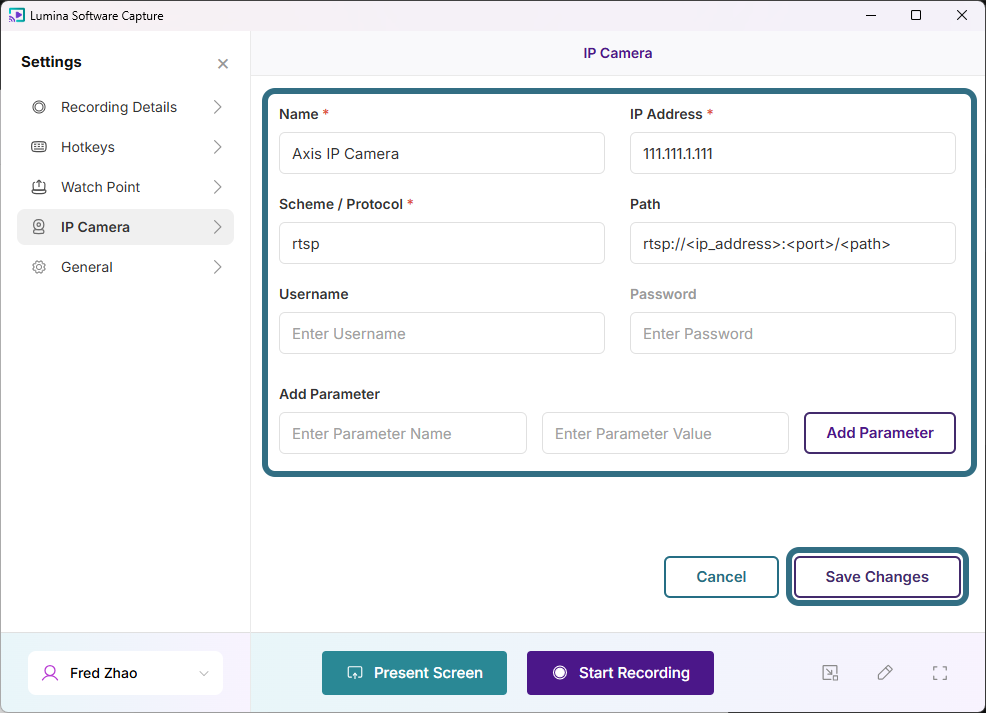

5. Fill in the applicable information for your IP / Wireless camera.




• Name: Add a nickname for the IP / Wireless camera.
• Scheme/Protocol: rtsp.
• IPAddress: The IP address of the IP / Wireless camera.
• Path: Refer to the user manual to find the IP / Wireless camera's streaming path.
• Username/Password: The username and password to access the IP / Wireless camera.
6. Click Add when done.

Using the IP / Wireless Camera with the YuJa Software Capture for PC Application

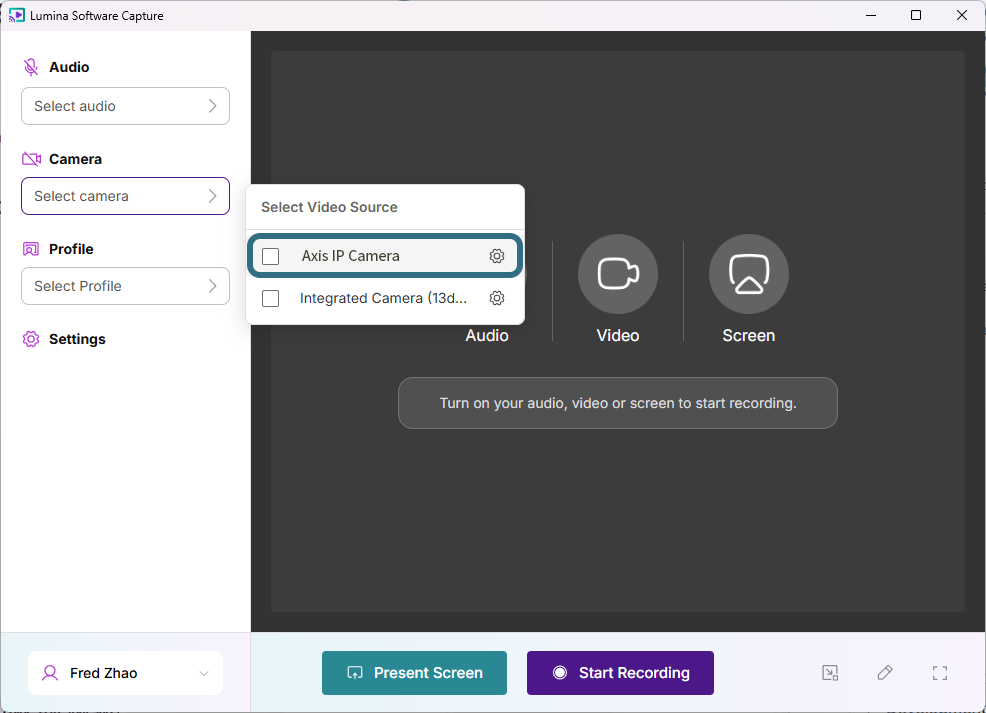

Once you have finished integrating the IP / Wireless Camera into the YuJa Software Capture for PC application, it will be available as a video source when streaming or recording from the Video menu.
