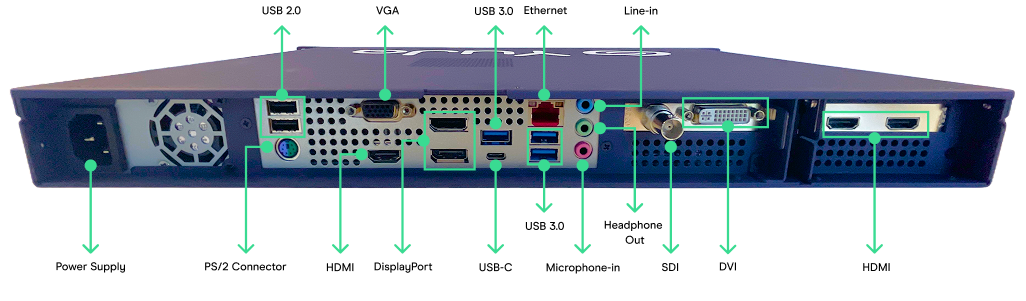

| Video Inputs | - 3 x HDMI
- 1 x SDI
- 1 x VGA
- 2 x DVI
- 2 x USB-A 2.0
- 3 x USB-A 3.0
- 1 x USB-C
|
| Network Video Protocol | |
| Audio Inputs | - RCA line-level unbalanced audio
- 3.5mm stereo
- HDMI and SDI embedded audio
- USB 2.0 and 3.0 microphones
|
| Video Encoding | - Codecs: MP4, Motion JPEG, and H.264 Hardware encoders at up to 30fps
- Color Resolution: 4:4:4 8-Bit RGB24, 4:4:4 8-Bit RGB32, 4:2:2 8-Bit YUY2, 4:2:0 8-Bit YV12, NV12
|
| Audio Encoding | |
| Recording Video Resolution | - Input: Up to 1080p at 60/50 fps
- Output: 1280×720p at 30fps or 1920×1080p at 30fps
|
| Network Requirements | - 1 x 10/100/1000 Ethernet ports
- Device communicates on outbound pots 80,443,12347 with additional outbound port selection based on availability
- All media and control instructions transmitted across secure channels
|
| Output Formats | - Encoded MPEG-4 media
- Stream to in-room monitors
- Multi-stream RTMP media stream
|
| Control | - Browser-based Admin Panel
- HTTPS and RS-232 APIs
|
| Unit Design | - 1U rack-mountable unit
- 244x68 LCD display
- 400W power supply
- 250GB fast recording storage
|
| Source Preview | Real-time signal monitoring or capture card input signal |
| Streaming Protocols | RTMP to YuJa Cloud |
