You can export Panorama reports and upload them to Microsoft Power BI to visualize your data.
Exporting a Panorama Report
To visualize your Panorama data on Power BI, you need to download both the issues report template and the report in JSON format.
- In Panorama's sidebar, select Reports.
- Select your desired report from the drop-down menu.
- Select your desired time range for the report in the Filter by Date selection menu.
- Click Export Report.
- Expand the Advanced Options section, click (Report Name) Template (e.g. Issues Report Template) to download the template.
- In the Export by field, select Direct Download.
- In the Format field, select JSON.
- In the Filter field, select Current date range.
- Click Export.
Uploading a Panorama Report into Power BI Desktop
Before proceeding, make sure you have downloaded Power BI, the desired report in JSON format, and the report template.
- Locate the downloaded report in your File Explorer.
- Right-click the file, then select Copy as path to copy the file path. You will paste the path later.
- Open the downloaded report template in Power BI. A Refresh window will pop up with the message: File or Folder: Could not find file 'C:\Enter the JSON file path for issues report'.
- Click Close.

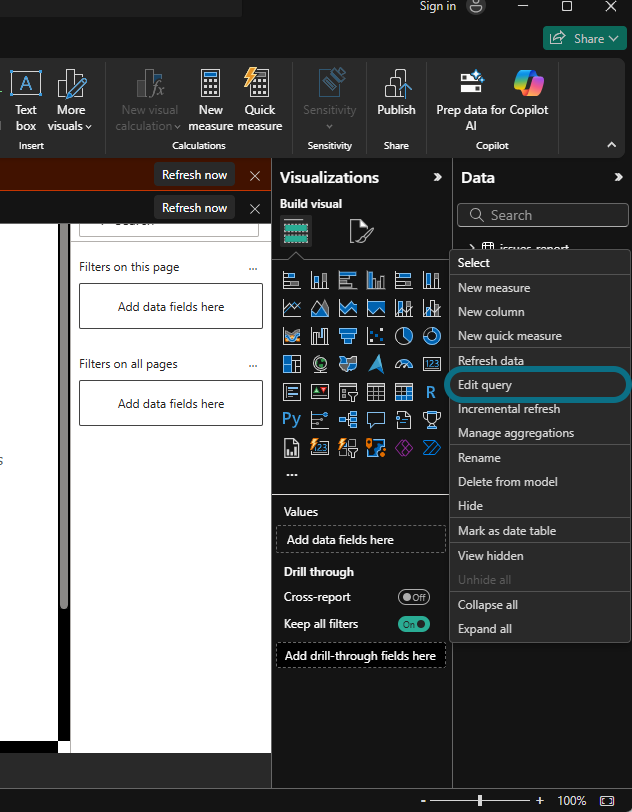

Note: You will be entering the JSON file path later as well. - In the Data side column, hover over the name of your report template, then click the More Actions button.
- Select Edit query. The new Power Query Editor window will pop up.

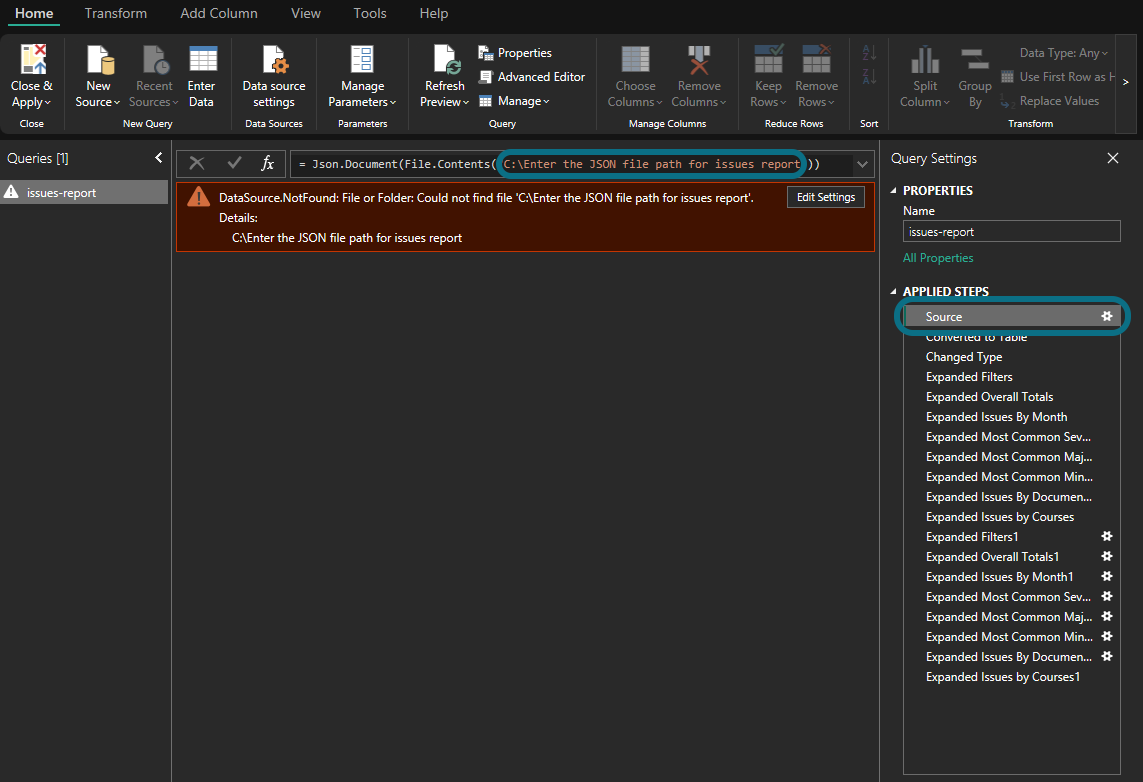

- On the side navbar, select Source under APPLIED STEPS.
- In the top formula bar, highlight C:\Enter the JSON file path for issues report, then paste the JSON file path copied in step 2 to replace it.

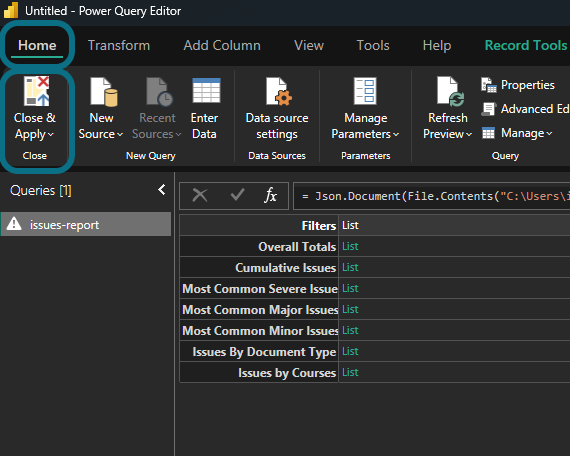

- Click the Home tab on the top navbar, then click Close & Apply to view the data visualization.
