Integrating YuJa Engage with ADFS (SAML)

Avatar
YuJa Product Support
  • Updated

Administrators can set up a secure connection between YuJa Engage and ADFS to authenticate users logging into YuJa Engage. To securely authenticate and log in users, please ensure YuJa Engage and ADFS have been configured by following the steps below.

What Is Required for the ADFS Configuration

The ADFS configuration requires three steps, as listed below.

  1. Creating a Relying Party Trust (RPT) with Engage.
  2. Add claim rules for the RPT so that SAML responses contain the correct information about the user.
  3. Adjusting the hash algorithm of the RPT. This ensures that all 3 parts are completed so that the configuration is done properly.

Creating a Relying Party Trust

Before proceeding with the steps below, please ensure you've received your Relying party SAML 2.0 SSO Service URL from your Customer Success Manager.

  1. On the ADFS server, open the application ADFS Management. In the left panel, under Trust Relationships, click on Relying Party Trusts (RPT).
  2. In the Actions tab, click on Add Relying Party Trust.
    The Relying Party Trust folder is shown within ADFS with the option to Add relying party trust highlighted.
  3. In the Add RPT Wizard window, click Start.
    The Add Relying Party Trust Wizard asking the user to start the process by completing several steps.
  4. Select Enter data about the relying party manually.
  5. Click Next.
    In the Select Data Source step, the option to Enter data about the relying party is selected, and the next button is shown highlighted.
  6. Enter a display name for the RPT (e.g. “YuJa Engage”). Click Next.
    In the Specify Display Name step, a display name is entered and the Next button is shown highlighted.
  7. Select ADFS Profile and click Next.
    In the Choose Profile step, AD FS profile is selected and the Next button is shown highlighted.
  8. On the Configure Certificate step, click Next. Do not encrypt claims sent to YuJa.
    The next button is shown highlighted in the Configure Certificate step.
  9. Select Enable support for the SAML 2.0 WebSSO protocol. Enter the Relying party SAML 2.0 SSO Service URL you received from your Customer Success Manager and click Next.
    The configure URL step, has Enabled Support for SAML 2.0 Web SSO protocol selected and the next button is shown highlighted.
  10. For the Relying party trust identifier, enter: “https://<YOUR_YUJA_ENGAGE_DOMAIN>.engage.yuja.com” without the quotations. Click Add, then click Next.
    In the configure identifiers step, a relying party trust identifier is shown added and the Next but is highlighted.
  11. Select I do not want to configure multi-factor authentication settings for this relying party trust at this time. Click Next.
    In the Configure multi-factor authentication now step, the I do not want to configure multi-factor option is selected and the Next button is shown highlighted.
  12. Select Permit all users to access this relying party. Click Next.
    In the choose insurance authorization rules step, Permit all users to access the relying party is selected and the next button is highlighted.
  13. Review the settings to make sure everything is correct, then click Next.
    In the Ready to add trust step, the Next button is shown highlighted.
  14. Make sure to have Open the Edit Claim Rules dialog for this relying party trust when the wizard closes selected, then click Close.
    In the finish step, Open the edit claim rules option is checked and the next button is shown highlighted.

Adding Claim Rules

  1. To create/edit claim rules, first, click on the RPT. On the right-side panel, click Edit Claim Rules.
    In the AD FS application, the YuJa Engage Relying party is selected.
  2. In the Edit Claim Rules for YuJa Engage window, click Add Rule.
    The edit claim rules window is shown with the Add rule button highlighted.
  3. Select Send LDAP Attributes as Claims and click Next.
    Send LDAP attributes as claims is selected from the drop-down menu and the next button is highlighted.
  4. Enter a Claim rule name (e.g. YuJa Engage).
  5. Select Active Directory as the Attribute Store.
  6. Create four claim mappings as shown in the table below, and then click Finish.
    Mapping of LDAP attributes to outgoing claim types:
    LDAP Attribute Outgoing Claim Type
    Email-Addresses E-mail Address
    Given-Name Given Name
    Surname Surname
    <An attribute relating to the role of a user(e.g. ITManager)> Role

    The LDAP attributes are shown within a table for the LDAP attributes and their outgoing claim type.

  7. Now, create a second claim rule. Click Add Rule.
     The Edit claim rule window shown the Add rule button highlighted.
  8. Select Transfer an Incoming Claim. Click Next.
    Transform an incoming claim is selected for the claim rule template and the next button is shown highlighted.
  9. Enter a Claim rule name. For Incoming claim type, select E-Mail Address. This is assuming that each user in the ADFS system has an e-mail address associated with them. If this is not the case, select Given Name instead.
  10. For Outgoing claim type, select Name ID. For Outgoing name ID format, select Email.
  11. Click Finish.
    The claim rule information is filled out and the Finish button is highlighted.
  12. Click OK in the Edit Claim Rules window.
    The OK button is shown highlighted for the Edit claim rule window.

Adjusting the Hash Algorithm

  1. Double-click on your RPT.
    The Engage relying party trust is selected from the AD FS application.
  2. Select the Advanced tab.
  3. From the Secure hash algorithm drop-down list, select SHA-1.
  4. Click OK.
    Advanced tab is selected for the YuJa ENgage properties and SHA-! is selected for Secure hash algorithm.

YuJa Engage Configuration

After you've adjusted all settings in ADFS, you will be able to configure settings within YuJa Engage.

  1. Log in to YuJa Engage as an IT Manager.
  2. Click Integrations from the left-side navigation menu and select SSO - ADFS [SAML] from the drop-down list.
    The YuJa Engage SSO ADFS integrations page.
  3. You will need to fill out the information for each of the panels for the integration—General SSO Details, User Provisioning, Role Mapping, and Cross Integration with LTI. Follow the table below to fill out the information.
    The YuJa Engage SSO ADFS integrations page shows information for the integration filled out.
    Attribute Required? Description
    General SSO Details
    ADFS SSO URL  Yes

    The URL used for the SSO. This is where YuJa Engage will send AuthnRequest tokens. Found in the IDP metadata as the “Location” attribute. Note: For Engage, an HTTP-Redirect binding is used.

    Example: “https:///adfs/ls/”
    Name ID Format Yes

    The format to be used by the SP and IDP when communicating about a subject. Found in the IDP metadata as the value of that tag. Note: If available, email addresses should be prioritized and used.

    Example: urn:oasis:names:tc:SAML:1.1:nameid- format:emailAddress
    Remote Logout URL Currently not supported Leave this value blank.
    ADFS Signing Certificate Fingerprint Yes

    The unique fingerprint of the IDP’s certificate is used when signing SAML responses. The thumbprint is not explicitly located in the metadata, but the certificate is used to sign either the SAMLResponse or the Assertion. See How to derive the fingerprint of a certificate in the Additional Tools section of this document for more details.

    Example: 7j2mka9cfe2d09j23eefe01442f6a49d1222391
    Logout URL Currently not supported

    Leave this value blank.
    User Provisioning
    Given Name Attribute No

    The name of the attribute in the SAML response describes the user's given name (i.e. first name). Found in the IDP metadata. There is a section in the .XML file that should contain a list of tags. Enter the value for the “Name” key, under the appropriate given name.

    The value should be: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname
    Family Name Attribute No

    The name of the attribute in the SAML response describes the user's family name (i.e. last name, surname). Found in the IDP metadata. There is a section in the .XML file that should contain a list of tags. Enter the value for the “Name” key, under the appropriate family name.

    The value should be: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname
    Email Attribute No

    The name of the attribute in the SAML response describes the user's email address. Found in the IDP metadata. There is a section in the .XML file that should contain a list of tags. Enter the value for the “Name” key, under the appropriate email address.

    The value should be: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress
    Role Attribute No

    The name of the attribute in the SAML response describes the user's role. Found in the IDP metadata. There is a section in the .XML file that should contain a list of tags. Enter the value for the “Name” key, under the appropriate role.

    The value should be: http://schemas.microsoft.com/ws/2008/06/identity/claims/role
    Role Mapping
    IT Manager No

    A comma-separated list of values can be used. If the value received in the Role Attribute matches any of these values, the user will be provisioned as an IT manager.

    Example: IT Manager
    Instructor No

    A comma-separated list of values can be used. If the value received in the Role Attribute matches any of these values, the user will be provisioned as an instructor.

    Example: Instructor, Teacher, or TA
    Cross Integration with LTI
    Linkage Attribute No A unique attribute that links the SSO with the LMS. This allows a user to be recognized as a single user regardless of whether they log in with their SSO or LMS (eg attribute: email)

  4. Once you have adjusted all required settings, click Save All Changes to complete the integration with ADFS.

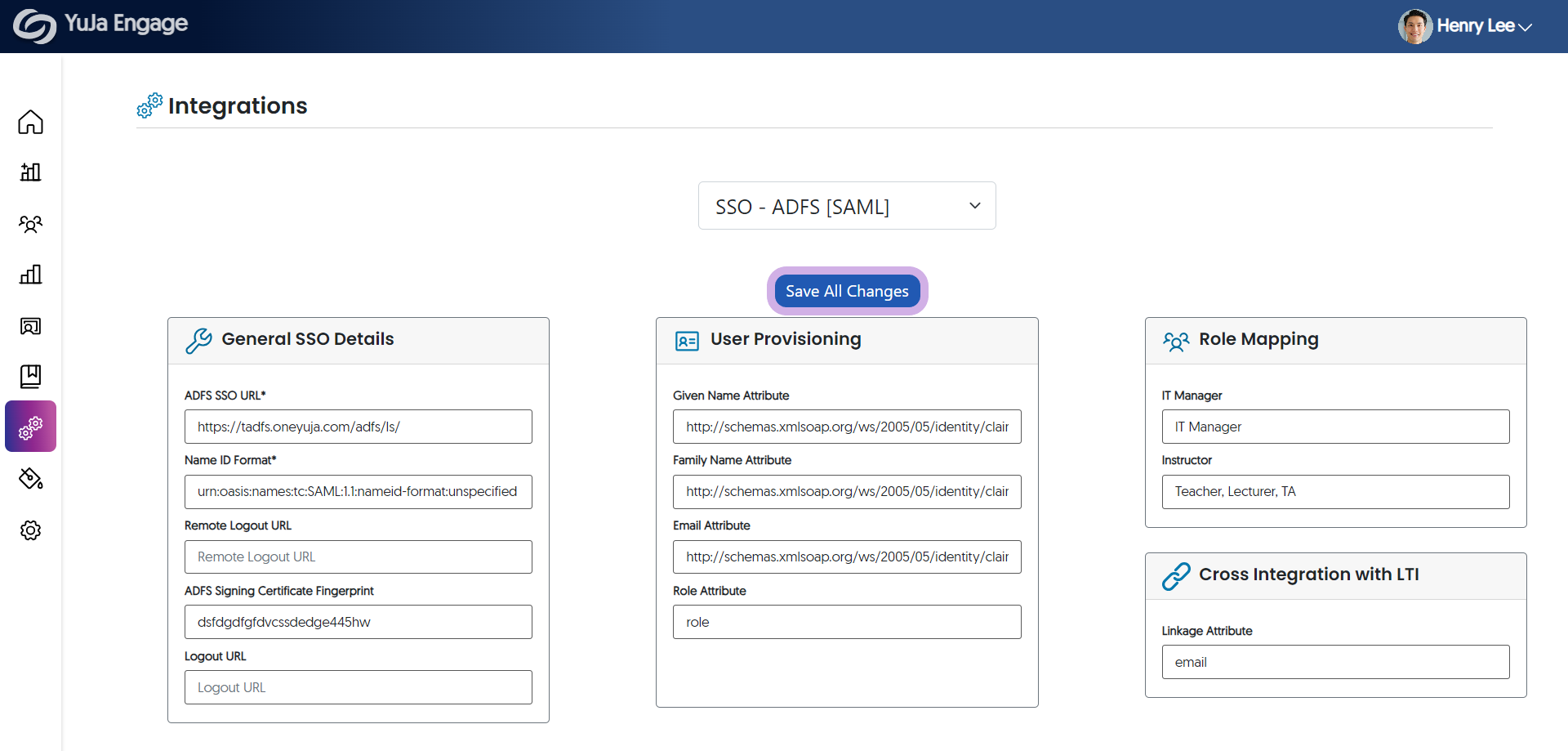

    The save button is shown highlighted for the Engage integration page.
