Integrating Engage with ADFS (SAML)

Avatar
YuJa
  • Updated

Administrators can set up a secure connection between Engage and ADFS to authenticate users logging into Engage. Configuring Engage and ADFS allows users to securely authenticate and log in.

Requirements for the ADFS Configuration

The ADFS configuration is composed of three steps.

  1. Creating a Relying Party Trust (RPT) with Engage.
  2. Adding claim rules for the RPT so that SAML responses contain the correct information about the user.
  3. Adjusting the hash algorithm of the RPT. This ensures that all 3 parts are completed so that the configuration is done properly.

Creating a Relying Party Trust

Before you start, make sure you have received your Relying party SAML 2.0 SSO Service URL from your Account Manager.

  1. On the ADFS server, open the application ADFS Management.
  2. In the left panel, under Trust Relationships, click Relying Party Trusts (RPT).
  3. In the Actions tab, click Add Relying Party Trust.
    The Relying Party Trust folder is shown within ADFS with the option to Add relying party trust highlighted.
  4. In the Add RPT Wizard window, click Start.
    The Add Relying Party Trust Wizard asking the user to start the process by completing several steps.
  5. Select Enter data about the relying party manually.
  6. Click Next.
    In the Select Data Source step, the option to Enter data about the relying party is selected, and the next button is shown highlighted.
  7. Enter a display name for the RPT (e.g. "YuJa Engage") and click Next.
    In the Specify Display Name step, a display name is entered and the Next button is shown highlighted.
  8. Select ADFS Profile and click Next.
    In the Choose Profile step, AD FS profile is selected and the Next button is shown highlighted.
  9. Click Next. Do not encrypt claims sent to YuJa.
    The next button is shown highlighted in the Configure Certificate step.
  10. Select the Enable support for the SAML 2.0 WebSSO protocol check box.
  11. Enter the Relying party SAML 2.0 SSO Service URL you received from your Account Manager and click Next.
    The configure URL step, has Enabled Support for SAML 2.0 Web SSO protocol selected and the next button is shown highlighted.
  12. In the Relying party trust identifier field, enter https://<YOUR_YUJA_ENGAGE_DOMAIN>.engage.yuja.com.
  13. Click Add > Next.
    In the configure identifiers step, a relying party trust identifier is shown added and the Next but is highlighted.
  14. Select I do not want to configure multi-factor authentication settings for this relying party trust at this time and click Next.
    In the Configure multi-factor authentication now step, the I do not want to configure multi-factor option is selected and the Next button is shown highlighted.
  15. Select Permit all users to access this relying party and click Next.
    In the choose insurance authorization rules step, Permit all users to access the relying party is selected and the next button is highlighted.
  16. Review the settings to make sure everything is correct and click Next.
    In the Ready to add trust step, the Next button is shown highlighted.
  17. Select Open the Edit Claim Rules dialog for this relying party trust when the wizard closes, and click Close.
    In the finish step, Open the edit claim rules option is checked and the next button is shown highlighted.

Adding Claim Rules

  1. To create or edit claim rules, click on the RPT.
  2. In the right-side panel, click Edit Claim Rules.
    In the AD FS application, the YuJa Engage Relying party is selected.
  3. In the Edit Claim Rules for YuJa Engage window, click Add Rule.
    The edit claim rules window is shown with the Add rule button highlighted.
  4. Select Send LDAP Attributes as Claims and click Next.
    Send LDAP attributes as claims is selected from the drop-down menu and the next button is highlighted.
  5. Enter a Claim rule name (e.g. YuJa Engage).
  6. Select Active Directory as the Attribute Store.

  7. Create four claim mappings as shown in the table below, and then click Finish.
    Mapping of LDAP attributes to outgoing claim types

    LDAP Attribute Outgoing Claim Type
    Email-Addresses E-mail Address
    Given-Name Given Name
    Surname Surname
    <An attribute relating to the role of a user(e.g. ITManager)> Role

    The LDAP attributes are shown within a table for the LDAP attributes and their outgoing claim type.

  8. To create a second claim rule, click Add Rule.
    The Edit claim rule window shown the Add rule button highlighted.
  9. Select Transfer an Incoming Claim and click Next.
    Transform an incoming claim is selected for the claim rule template and the next button is shown highlighted.
  10. Enter a Claim rule name.
  11. In the Incoming claim type drop-down field, select E-Mail Address (if each user in the ADFS system has an e-mail address associated with them) or Given Name.
  12. In the Outgoing claim type field, select Name ID.
  13. In the Outgoing name ID format field, select Email.
  14. Click Finish.
    The claim rule information is filled out and the Finish button is highlighted.
  15. Click OK.
    The OK button is shown highlighted for the Edit claim rule window.

Adjusting the Hash Algorithm

  1. Double-click your RPT.
    The Engage relying party trust is selected from the AD FS application.
  2. Select the Advanced tab.
  3. In the Secure hash algorithm drop-down field, select SHA-1.
  4. Click OK.
    Advanced tab is selected for the YuJa ENgage properties and SHA-! is selected for Secure hash algorithm.

Configuring Engage

After you have adjusted all settings in ADFS, you will be able to configure settings within Engage.

  1. Log in to Engage as an IT Manager.
  2. In the side navbar, select Integrations.
    Engage Integrations
  3. In the drop-down field, select SSO - ADFS [SAML].

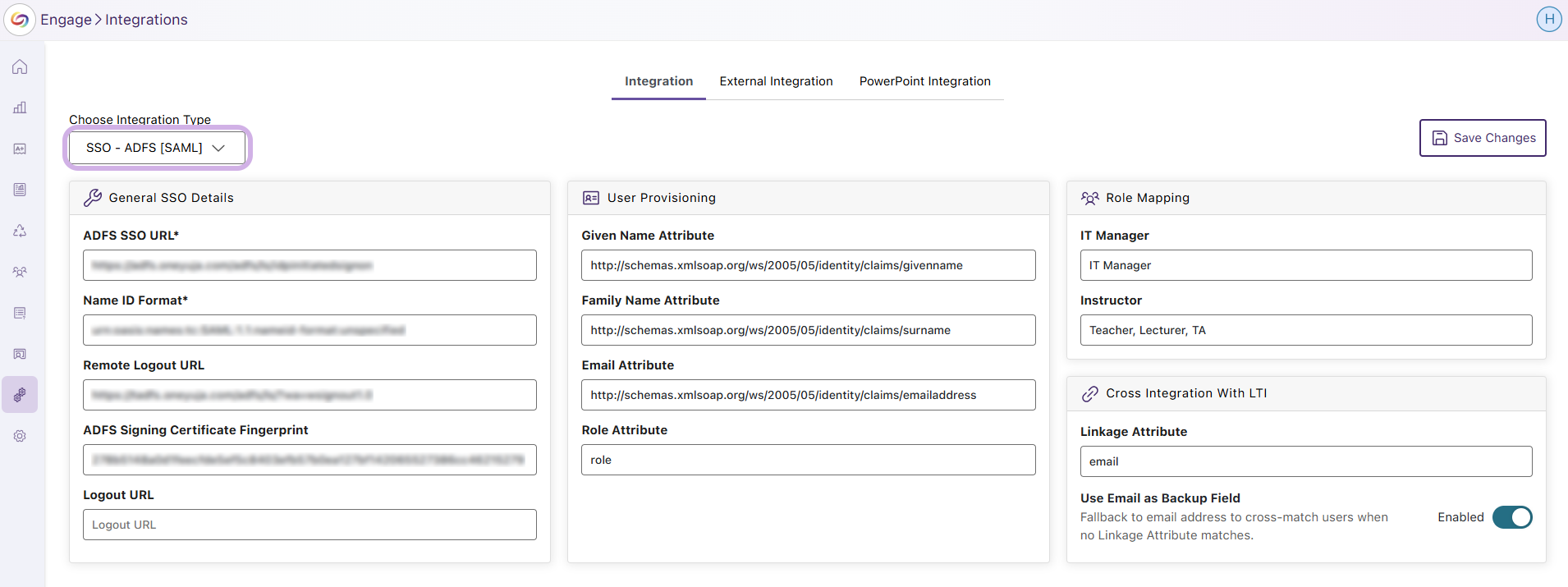

    Engage SSO-ADFS integration


  4. Enter the information as shown for each of the panels for the integration—General SSO Details, User Provisioning, Role Mapping, and Cross Integration with LTI.

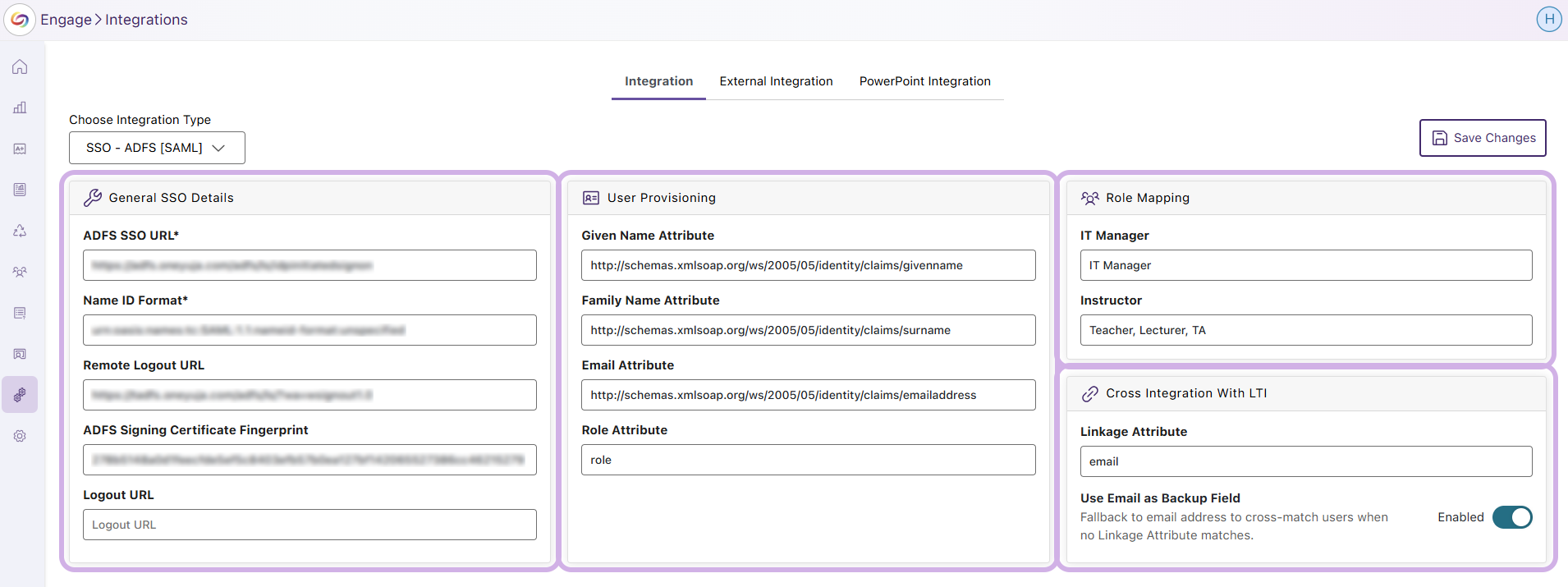

    Engage information to enter for hte integration

    Attribute Required? Description
    General SSO Details
    ADFS SSO URL  Yes

    The URL used for the SSO. This is where YuJa Engage will send AuthnRequest tokens. Found in the IDP metadata as the "Location" attribute. Note: For Engage, an HTTP-Redirect binding is used.

    Example: "https:///adfs/ls/"
    Name ID Format Yes

    The format to be used by the SP and IDP when communicating about a subject. Found in the IDP metadata as the value of that tag. Note: If available, email addresses should be prioritized and used.

    Example: urn:oasis:names:tc:SAML:1.1:nameid- format:emailAddress
    Remote Logout URL Currently not supported Leave this value blank.
    ADFS Signing Certificate Fingerprint Yes

    The unique fingerprint of the IDP's certificate is used when signing SAML responses. The thumbprint is not explicitly located in the metadata, but the certificate is used to sign either the SAMLResponse or the Assertion. See How to derive the fingerprint of a certificate in the Additional Tools section of this document for more details.

    Example: 7j2mka9cfe2d09j23eefe01442f6a49d1222391
    Logout URL Currently not supported Leave this value blank.
    User Provisioning
    Given Name Attribute No

    The name of the attribute in the SAML response describes the user's given name (i.e. first name). Found in the IDP metadata. There is a section in the XML file that should contain a list of tags. Enter the value for the "Name" key, under the appropriate given name.

    The value should be: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname
    Family Name Attribute No

    The name of the attribute in the SAML response describes the user's family name (i.e. last name, surname). Found in the IDP metadata. There is a section in the XML file that should contain a list of tags. Enter the value for the "Name" key, under the appropriate family name.

    The value should be: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname
    Email Attribute No

    The name of the attribute in the SAML response describes the user's email address. Found in the IDP metadata. There is a section in the XML file that should contain a list of tags. Enter the value for the "Name" key, under the appropriate email address.

    The value should be: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress
    Role Attribute No

    The name of the attribute in the SAML response describes the user's role. Found in the IDP metadata. There is a section in the XML file that should contain a list of tags. Enter the value for the "Name" key, under the appropriate role.

    The value should be: http://schemas.microsoft.com/ws/2008/06/identity/claims/role
    Role Mapping
    IT Manager No

    A comma-separated list of values can be used. If the value received in the Role Attribute matches any of these values, the user will be provisioned as an IT manager.

    Example: IT Manager
    Instructor No

    A comma-separated list of values can be used. If the value received in the Role Attribute matches any of these values, the user will be provisioned as an instructor.

    Example: Instructor, Teacher, or TA
    Cross Integration with LTI
    Linkage Attribute No A unique attribute that links the SSO with the LMS. This allows a user to be recognized as a single user regardless of whether they log in with their SSO or LMS (e.g. attribute: email)
  5. Click Save Changes.

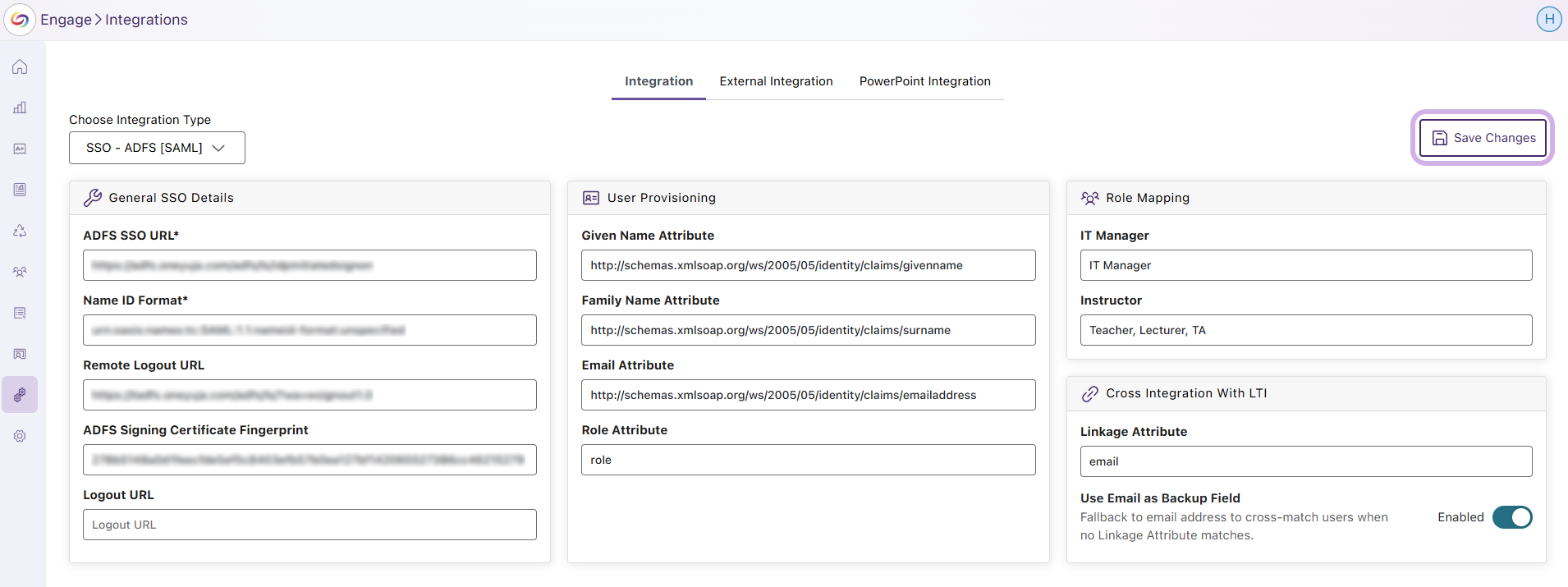

    Engage saving changes for the integration
