Integrating Engage into Moodle Using LTI 1.3

Avatar
YuJa
  • Updated

Admins can integrate Engage into their Moodle learning management system (LMS). The integration allows polls to be created, published, and graded directly to Moodle courses and viewed by admins, instructors, and students. If you have any questions regarding the steps in this process, please contact your dedicated Client Success Manager.

Integrating Engage into Moodle

The integration process will create the details to configure the Engage API for your institution.

  1. Log in to Moodle as an administrator.

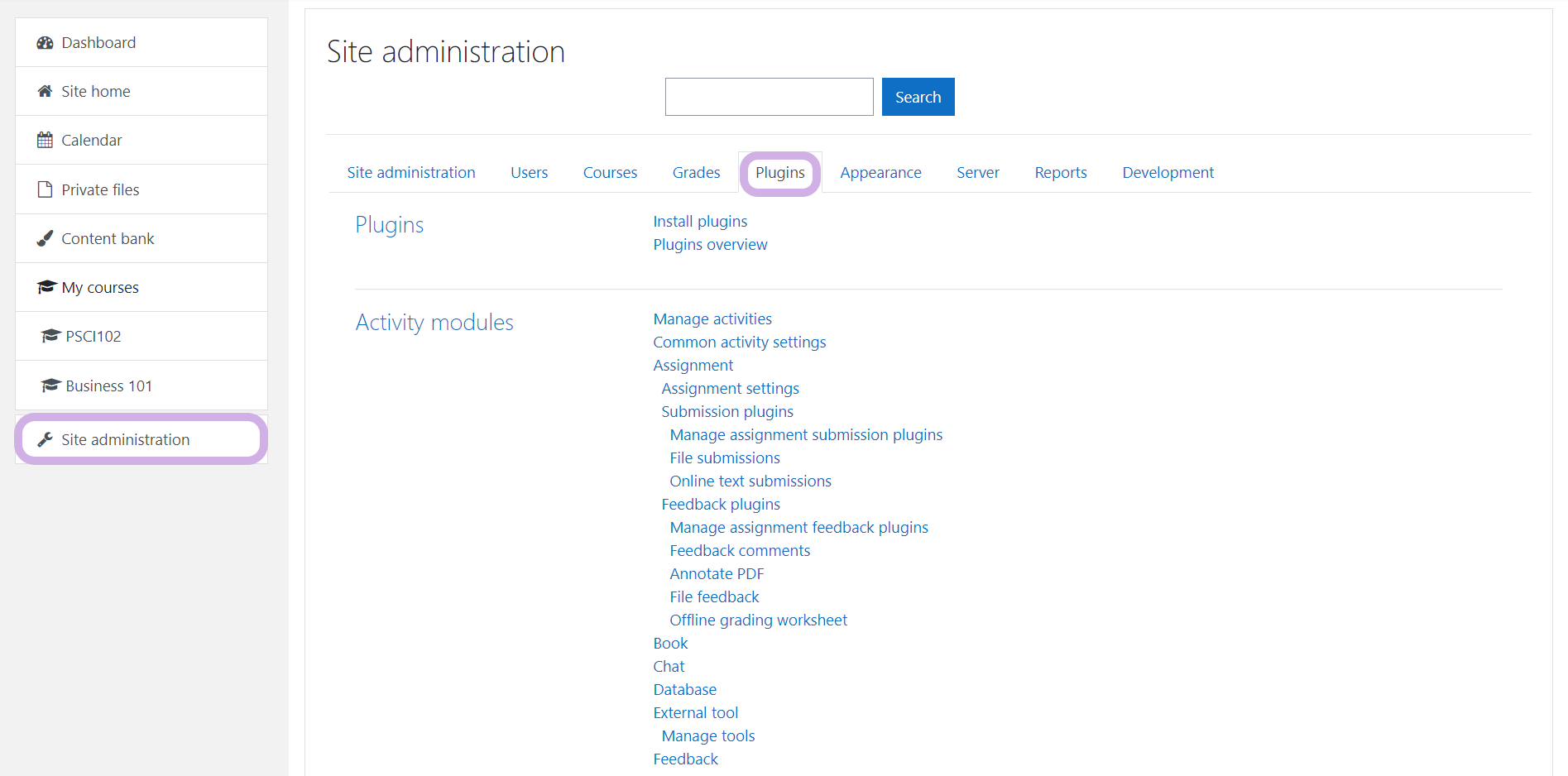

  2. In the side navbar, select Site administration > Plugins.
    Moodle how to edit plugins
  3. In the Activity modules section, select Manage tools.
    Moodle select Manage tools
  4. Click configure a tool manually.
    Moodle click configure a tool manually

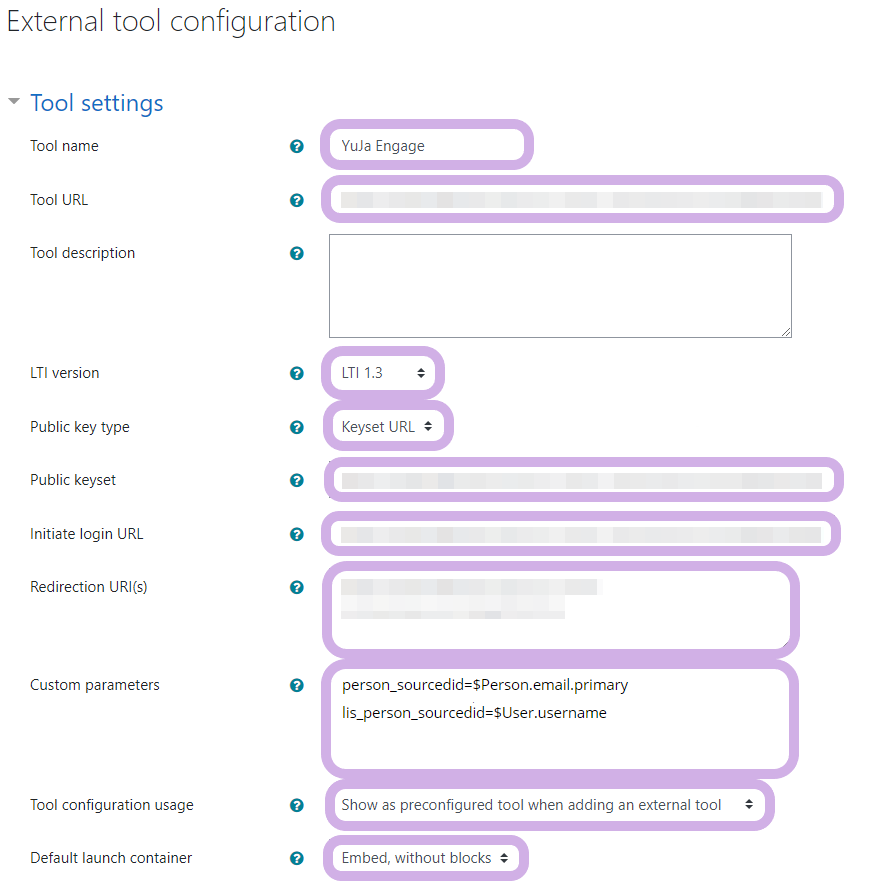

  5. In the Tool settings section, enter the following information as shown below.

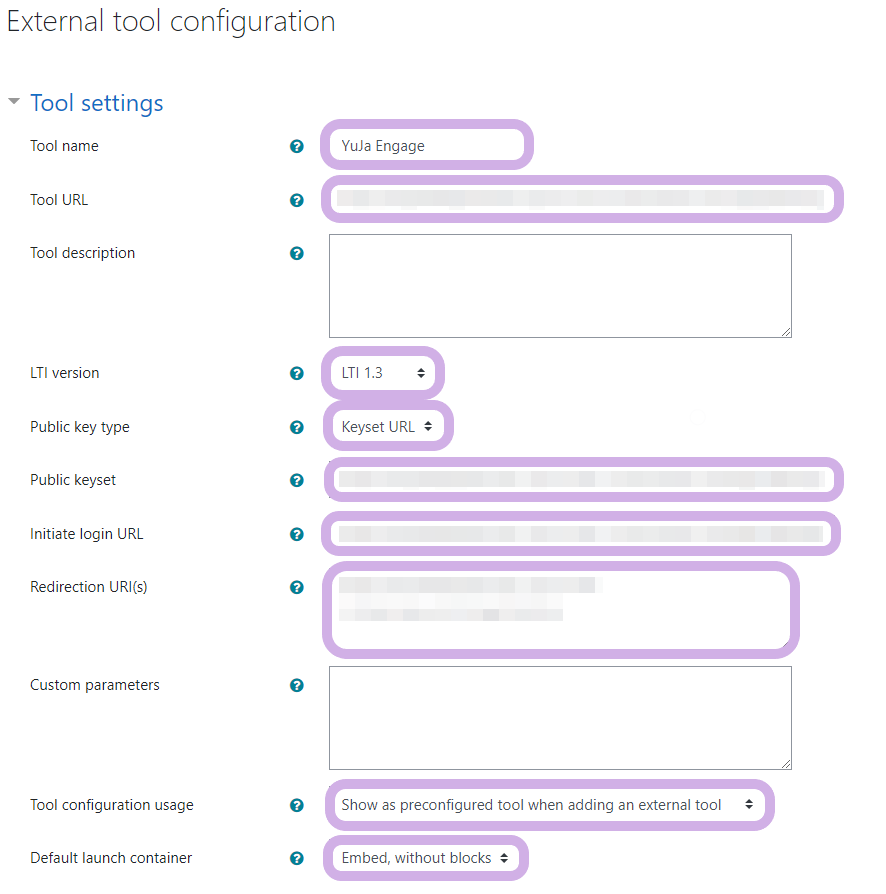

    Moodle edit the Tool settings
      • Tool name: Any name you choose that helps identify the tool.
      • Tool URL: The tool URL provided by your Client Success Manager.
      • LTI version: Select LTI 1.3.
      • Public key type: Select Keyset URL.
      • Public keyset: The public keyset provided by your Client Success Manager.
      • Initiate login URL: The initiate login URL provided by your Client Success Manager.
      • Redirection URl(s): The redirection URI(s) provided by your Client Success Manager.
      • Custom parameters:
        • person_sourcedid=$Person.email.primary

        • lis_person_sourcedid=$User.username

      • Tool configuration usage: Select Show in activity chooser and as a preconfigured tool.
      • Default Launch Container: Select New Window.
      • Select the Supports Deep Linking (Content-Item Message) check box.
  6. In the Services section, select the settings as shown below.
    Moodle edit the Services section
      • IMS LTI Assignment and Grade Services: Select Use this service for grade sync and column management.
      • IMS LTI Names and Role Provisioning: Select Use this service to retrieve members' information as per privacy settings.
      • Tool Settings: Select Do not use this service.

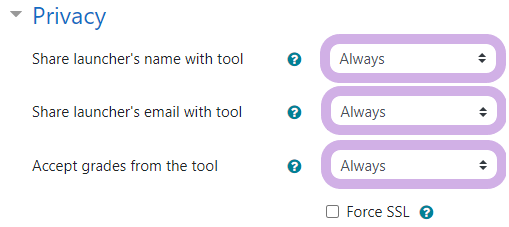

  7. In the Privacy section, select the settings as shown below.
    Moodle edit the Privacy section
      • Share launcher's name with tool: Select Always.
      • Share launcher's email with tool: Select Always.
      • Accept grades from the tool: Select Always.
  8. In the Miscellaneous section, select the settings as shown below, and then click Save Changes.
    Moodle
      • Default organisation ID: Select Site hostname.
      • Organisation URL: The organisation URL provided by your Client Success Manager.
  9. Locate the YuJa Engage tool and click the View configuration details button.
  10. Make note of the Tool configuration details. They will be required when configuring the Engage API.
    Moodle make note of the Tool configuration details

Configuring the Engage API

Once you have added Engage to Moodle, you will be required to configure the Engage API to allow for data transfer between Moodle and Engage. Make sure your Client Success Manager has provided you with your ISS, OIDC Endpoint, JWKS Endpoint, and OAuth2 Token Endpoint.

  1. Log in to Engage as an admin using your zone URL.
      • Example: https://www.evergreen.engage.yuja.com

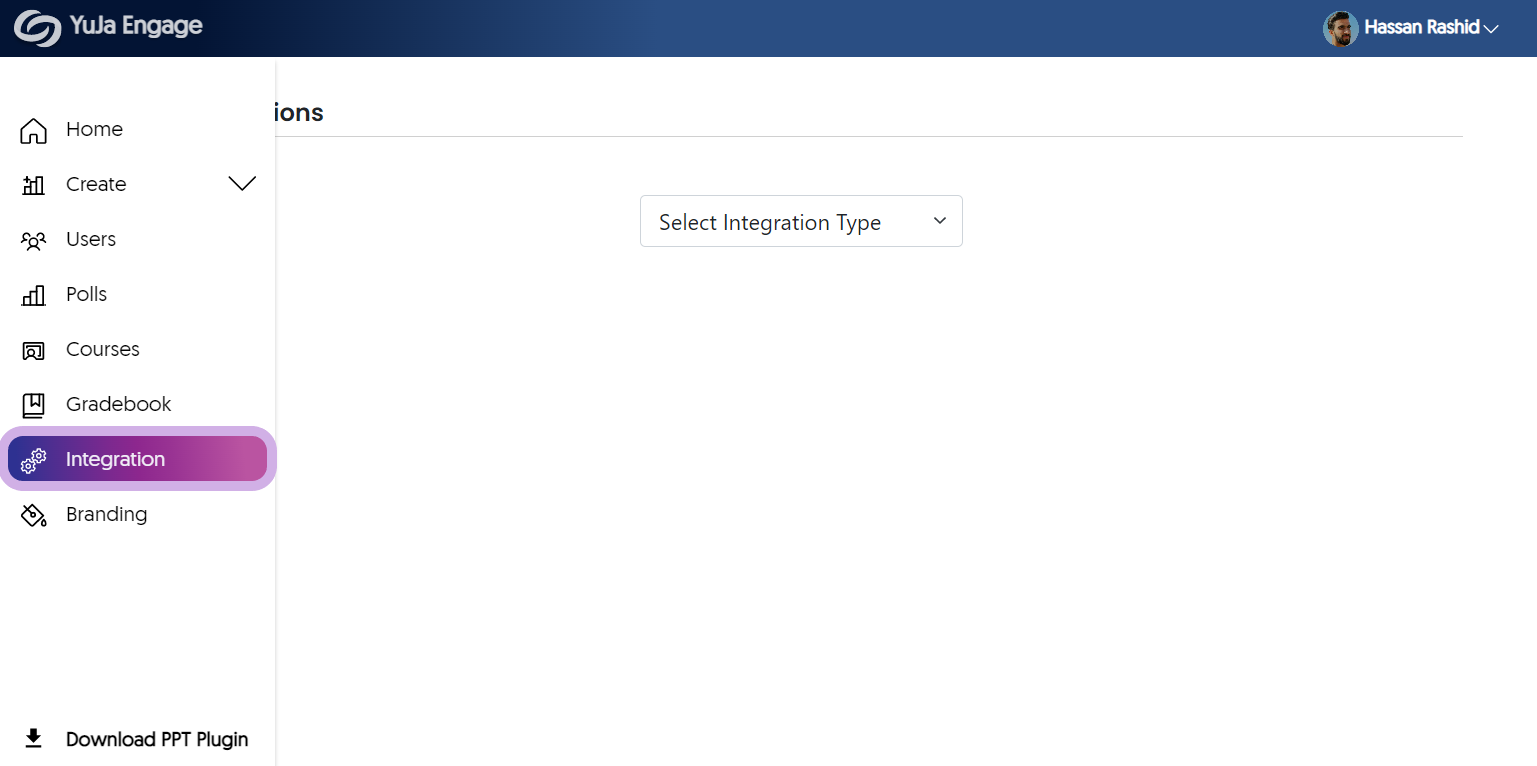

  2. In the side navbar, select Integrations.
    Engage select Integrations

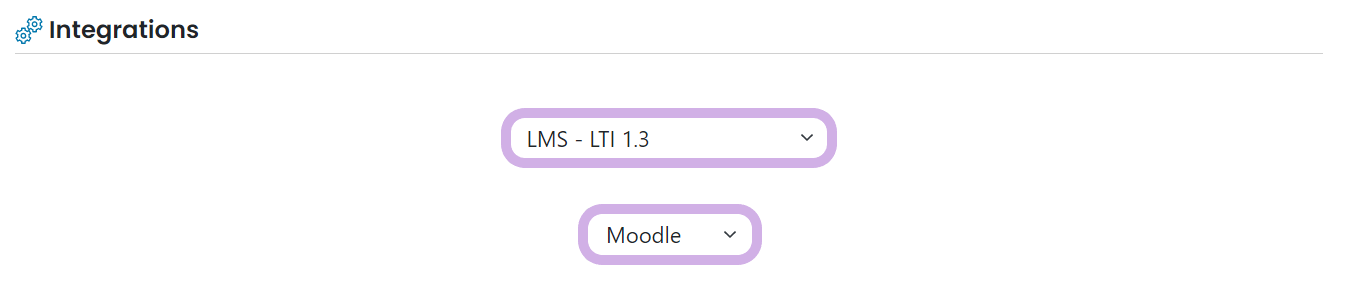

  3. In the Select Integration Type drop-down menu, select LMS LTI 1.3.
  4. In the Select LMS drop-down menu, select Moodle.
    Engage select Integration Type and LMS

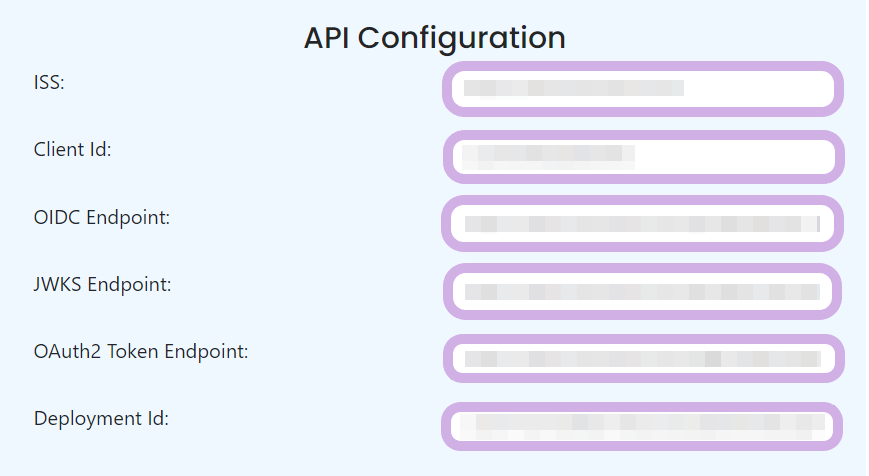

  5. In the API Configuration section, use the Tool configuration details noted in the Integrating Engage into LTI 1.3 section to enter the information as shown below.

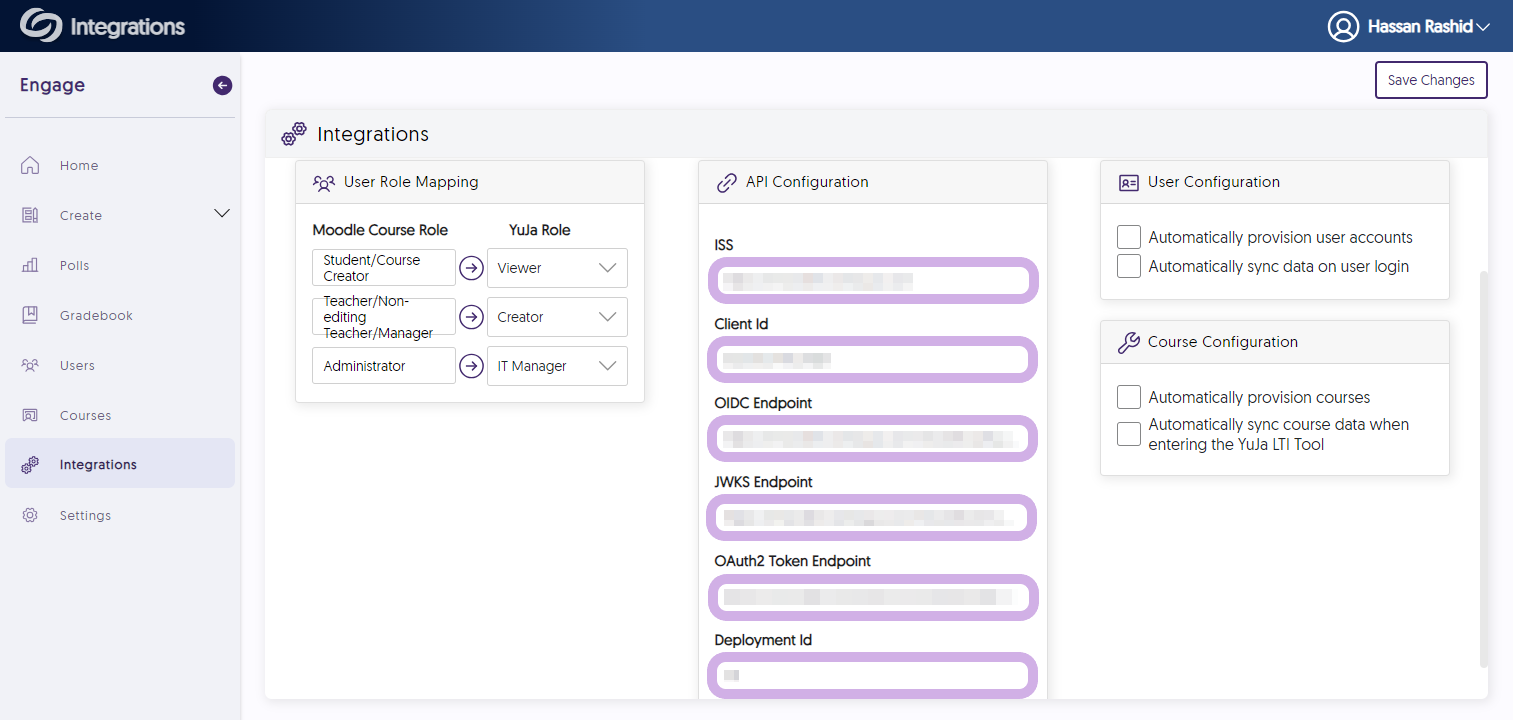

    Engage enter the API Configuration settings
      • ISS: Your Platform ID
      • Client Id: Your Client ID
      • OIDC Endpoint: Your Authentication Request URL
      • JWKS Endpoint: Your Public keyset URL
      • OAuth2 Token Endpoint: Your Access token URL
      • Deployment Id: Your Deployment ID
  6. In the User Configuration and Course Configuration sections, turn on the toggles.
    Engage enter the User and Course configurations
  7. Click Save Changes.
    Engage save the configurations

Adding Engage to a Course

Once the integration process is complete, Engage can be added to any course as an external tool.

  1. Log in to Moodle and select your course.

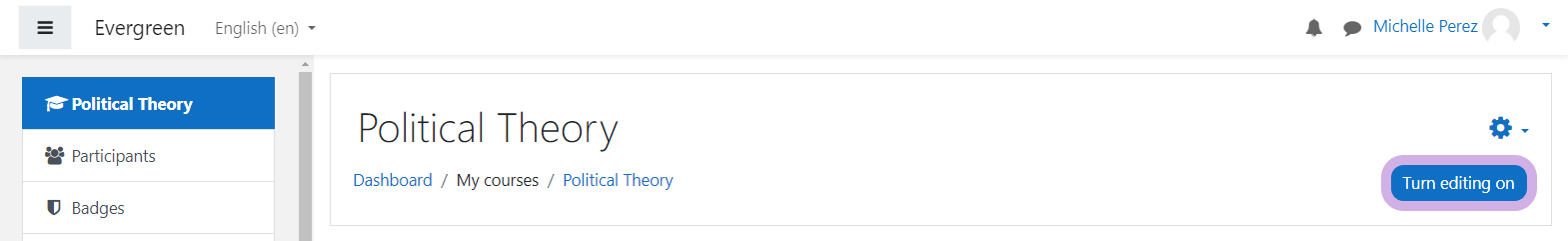

  2. Turn on the Edit mode toggle.
    Moodle turn on Edit mode
  3. In the section you want to add Engage, click Add an activity or resource or + > Activity or resource.
    Moodle add an activity or resource
  4. Select the Activities tab and then click YuJa Engage.
    Note    : The name of the Activity is the name you entered in step 5 of Integrating Engage into LTI 1.3.
    Engage select the external tool
  5. Enter the information as shown below, and then click Save and return to course. The Engage LTI link will appear.
    Moodle create the Engage LTI link
      • Activity name: Enter the name you want the Engage LTI link to appear as.
  6. Select the Engage LTI link to access Engage inside Moodle.  Moodle select the Engage LTI link
